1.Heat Transfer lab
Area-66 Sqm
Investment- Rs.1,75,194/-
|
Shell And Tube Heat Exchanger |
| Pin Fin Surface |
| Apparatus To Determination Of Critical Heat Flux Apparatus |
| Thermal Conductivity Of Metal Rod. |
| Stefan Boltzmann Apparatus |
|
2.Mechatronics lab
Area-66 Sqm
Investment-Rs.4,28,625/-
.jpg)
|
Electro Pneumatic Trainer Kit |
| Electro Hydraulic Trainer Kit |

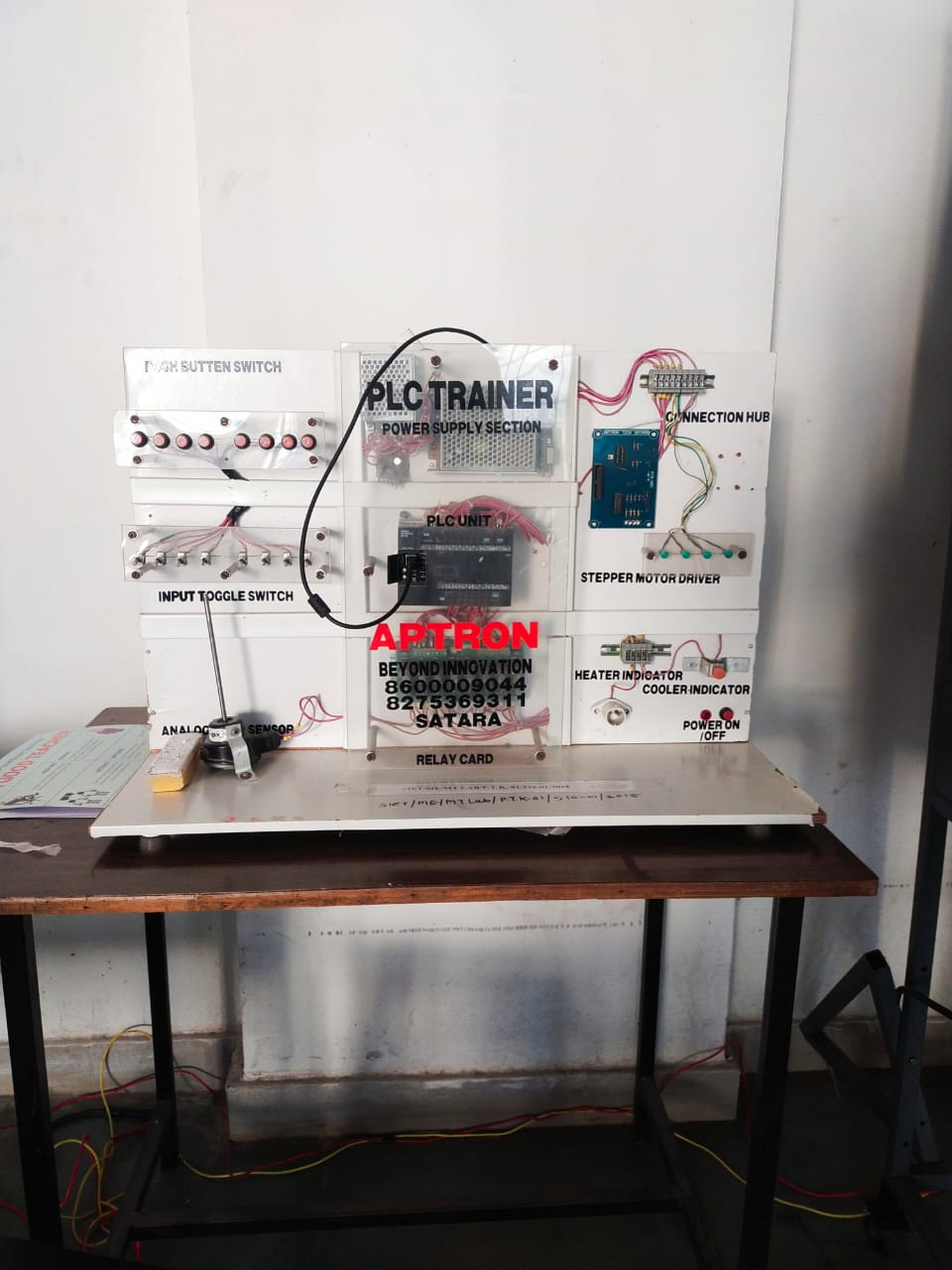

| Plc. Trainer Kit |
|
3.Applied Thermodynamics lab
Area-66 Sqm
Investment-Rs.2,82,757/-
|
Trial On Centrifugal Blower Apparatus |
| Separating & Throttling Calorimeter |
| Bomb Calorimeter |
| Babcock And Wilcox Boiler |
| Lancashire Boiler |
| Cochran Boiler (Fire Tube Type) |
| Cut Section Model Of Bourdon Tube Pressure Gauge |
| Spring Loaded Safety Valve |
| Steam Stop Valve |
| Fusible Plug |
| Blow Off Cock |
| Greens Economizer |
| Air-Preheater |
|
4.Fluid Mechanics lab
Area-66 Sqm
Investment-Rs.5,48,782/-
|
Reynolds Apparatus |
| Bernoulli’s Apparatus |
| Flow Transducer Trainer |
| Major & Minor Losses In Pipes |
| Notch Apparatus |
| Centrifugal Pump Test Rig |
| Impact Of Jet Apparatus |
| Redwood Type Viscometer |
| Flow Measurement Devices Apparatus |
| Metacentric Height Of Ship Model |
| Hydraulic Tilting Flume-5mtr Long |
|
5.IC Engine lab
Area-66 Sqm
Investment-Rs.10,72,633/-
|
Single Cylinder, 4 Stroke, Diesel, Setup Provision)225
|
| Three Cylinder, 4 Stroke, Petrol, Maruti 800, Model - 231H |
| Exhaust Gas Analyser Model: HG-540 |
| Two stage Air Compressor Test Rig 3HP |
|
6.Material Science & Metallurgy lab
Area-66 Sqm
Investment-Rs.1,63,819/-
|
Brinnel and Rockwell Hardness taster M/C.RAB-250 |
| Ericson Cupping Test |
| Metallurgical Microscope |
| Dye Penetration test Kit |
| Bench Grander |
|
7.RAC lab
Area-66 Sqm
Investment-Rs.23,063/-
|
Hermetically Sealed Compressor |
| Window Air Conditioner Model |
|
8.Auto-CAD lab
Area-66 Sqm
Investment-Rs.6,28,765/-
|
HCL Computer Set (27-Nos) |
| Printer CANON –LBP 2900 |
| EPSON LCD PROJECTER |
| 24 PORT D-LINK SWITCH |
| Vedh 4 Megapixel Dome Camera |
| 6Wall rack d link NWR |
| HP Computer set |
|
9.Metrology And Quality Control lab
Area-66 Sqm
Investment-3,27,228/-
|
Vernier caliper (0-150mm, L.C. 0.02 )&6'' |
| Micrometer Screw Gauge (0-25mm) |
| Filler gauge.26 Blades 4'' |
| Radius gauge |
| Dial Indicator (Plunger Type). |
| Vernier Depth Gauge 12'' |
| Digital Out Side Micrometer (0-25mm) |
| Screw Thread Micrometer (0-25mm) |
| Combination Square set 300 mm/12'' |
| Bevel Protractor 300 mm/12'' |
| Lever Type Dial (0-0.8mm, L.C. 0.01mm) |
| Sine Bar (0-200mm) |
| Steel Slip Gauge Set M88. |
| Monochromatic Light source with Optical Flat Set. |
| Gear Tooth Vernier Caliper 1-26mm |
| Flexible Dial Stand (Magnetic Base) |
| Dia 20 Plain plug gauge Φ 20 GO-NO-GO |
| Master Ring Gauge Φ 20 |
| Adjustable Snap Gauge 0-6 mm |
| Profile Projector 300T with 10X &20X lens |
|
10.Theory of Machine lab
Area-66 Sqm
Investment-Rs.1,54,986/-
|
CAM Analysis Machine |
| Universal Governor (Centrifugal) |
| Slider Crank Mechanism |
| Hooks Joint Model |
| CUT SECTION MODEL OF Reciprocating 2-Stroke I C Engine Mechanism |
| Bi-Cycle Free Wheel Sprocket mechanism-with chain, chain-wheel & pedal system for rotation |
| Ackerman’s steering Gear Mechanism |
| Foot Operated Air Pump Mechanism. |
| Internal Expanding Shoe Brake (2-wheeler) |
| Quick Return Mechanism of Shaper Machine. |
| Models of Different Types of Belt Drives.1) Simple Belt Drive |
| Model Of Multi Plate Clutch Of Scooter (Static) |
| Cut section model of single plate |
| Cut section model of diaphragm clutch system |
| Cut section model of synchromesh gear Box |
| Cut section model of constant mesh gear box |
| Differential With Gears |
| Involute Gear Tooth Profile |
| Single and double rotor system |
